Triple Tank Ultrasonic Cleaning + Filtration + Rinsing + Drying Series - Precision Parts Equipment

Product Features: Triple Tank Ultrasonic Cleaning + Filtration + Rinsing + Drying Series

1. 4-in-1 Integrated Full-Process SolutionIntegrates ultrasonic cleaning, precision filtration, multi-stage rinsing, and hot air drying in one system, realizing seamless connection of "contamination removal → impurity filtration → residual cleaning → rapid drying". No need for additional independent equipment, saving workshop space and simplifying production processes, especially suitable for industrial batch cleaning scenarios.
2. Triple-Tank Partition Design for Superior CleanlinessIndependent functional zones (cleaning tank + rinsing tank + drying tank) avoid cross-contamination. The first tank uses 28-130KHz multi-frequency ultrasonic waves to strongly strip oil stains, metal chips, flux, and other contaminants; the second tank is equipped with a precision filtration system (5μm) for cyclic rinsing to remove residual cleaning agents and micro-impurities; the third tank completes rapid drying, ensuring the workpiece surface meets high-purity standards (Ra ≤ 0.5nm) without secondary pollution.
3. Efficient Filtration & Circulation to Reduce CostsBuilt-in high-precision filtration device with optional 1-5μm filter element, increasing cleaning solution recycling rate by over 70% and reducing detergent replacement frequency by 60%. The 304/316L stainless steel tank (2mm thickened) adopts TIG welding technology, featuring corrosion resistance and wear resistance, supporting 24/7 continuous operation, and extending service life by 30% compared to ordinary equipment. Annual consumable cost savings exceed 40%.
4. Gentle Drying & Non-Destructive CleaningThe drying tank is equipped with a 40-95℃ adjustable constant temperature system and Class 100 clean hot air, achieving rapid drying in 3-8 minutes without water stains or oxidation. The ultrasonic power supports stepless adjustment (0-100%), and customized cleaning parameters are available for soft metals (aluminum, copper), precision electronic components, medical devices, and other materials, balancing "powerful decontamination" and "workpiece integrity protection".
5. Wide Adaptability & Strong VersatilityIdeal for cleaning workpieces in electronics, hardware, mechanical manufacturing, medical devices, optics, and other industries, such as PCB boards, gears, bearings, surgical instruments, and optical lenses. It can efficiently handle various contaminants (oil, chips, dust, residual reagents) and adapt to different material requirements, meeting both mass production and precision cleaning needs.
6. Intelligent Operation & Stable PerformanceEquipped with a touch screen control system with parameter memory function, enabling one-click startup and precise adjustment of cleaning time, ultrasonic power, drying temperature, etc. The integrated structure is designed with shock absorption and noise reduction, ensuring stable operation with low energy consumption. The tank body has an overflow and drainage structure for easy maintenance and daily cleaning.
7. Customizable Configuration for Diversified NeedsSupports non-standard customization of tank volume (10-500L), filter precision (1-5μm), ultrasonic frequency, and drying mode (hot air/nitrogen drying) according to workpiece size, cleaning requirements, and industry standards. It can be flexibly connected to automated feeding and unloading systems to improve production efficiency.

8.









triple tank ultrasonic cleaner

ultrasonic cleaning filtration drying equipment

precision parts ultrasonic cleaning system

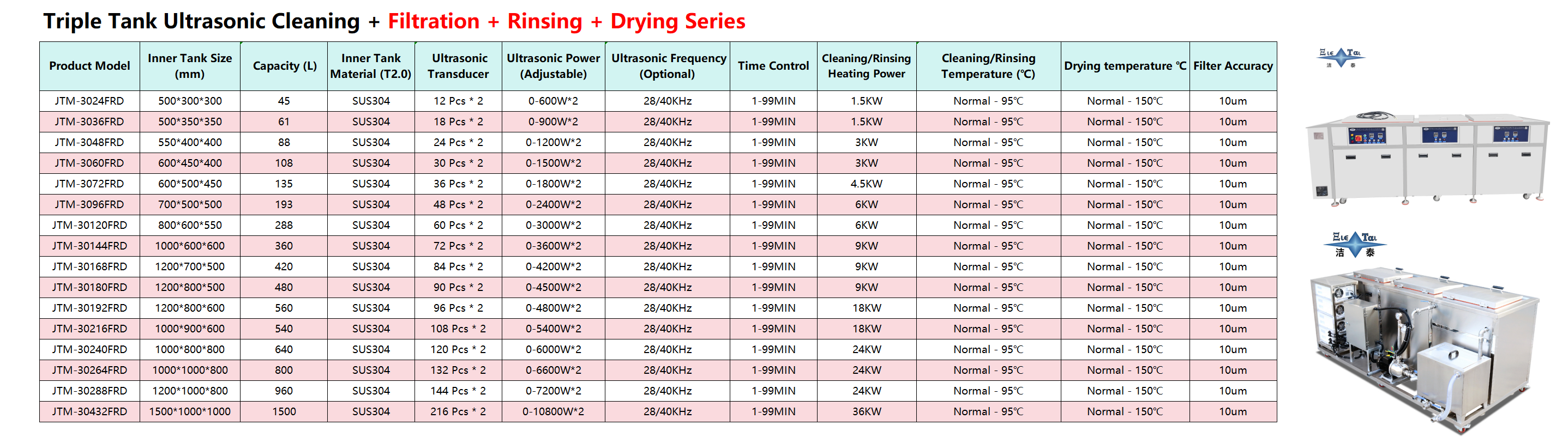

Triple Tank Ultrasonic Cleaning + Filtration + Rinsing + Drying Series - Precision Parts Equipment Images
